参考链接 https://zhuanlan.zhihu.com/p/122578441
mysql-master
1、首先创建Dckerfile
Dockerfile 长这样，具体的命令上面有解释。核心逻辑就是拷贝两个文件进去，然后在容器启动的时候执行 conf.sh，由 conf.sh 执行另外一个文件。
From mysql:5.7.25
MAINTAINER [email protected]
#设置免密登录
ENV MYSQL_ALLOW_EMPTY_PASSWORD yes
#将所需文件放到容器中
COPY conf.sh /mysql/conf.sh
COPY privileges.sql /mysql/privileges.sql
#设置容器启动时执行的命令
CMD ["sh", "/mysql/conf.sh"]
首先设置允许免密登录是为了方便后面配置，密码最后再通过 privileges.sql 来设置。
2、编写容器启动脚本conf.sh
#!/bin/bash
set -e
#查看mysql服务的状态，方便调试，这条语句可以删除
echo '1. set server_id....'
sed -i '/\[mysqld\]/a server-id=1\nlog-bin=/var/log/mysql/mysql-bin\ngtid-mode=ON\nenforce-gtid-consistency=ON' /etc/mysql/mysql.conf.d/mysqld.cnf
echo '2. start mysql...'
service mysql start
echo '3. setting password...'
sed -i 's/MYSQLROOTPASSWORD/'$MYSQL_ROOT_PASSWORD'/' /mysql/privileges.sql
sed -i 's/MYSQLREPLICATIONUSER/'$MYSQL_REPLICATION_USER'/' /mysql/privileges.sql
sed -i 's/MYSQLREPLICATIONPASSWORD/'$MYSQL_REPLICATION_PASSWORD'/' /mysql/privileges.sql
mysql < /mysql/privileges.sql
echo '4. service mysql status'
echo 'mysql for intsig if ready...'
tail -f /dev/null
3、privileges.sql
这个文件是对 MySQL 进行一些权限配置，比如设置用户密码，创建新用户，数据库授权等。
use mysql;
set password for root@'localhost' = password("MYSQLROOTPASSWORD");
grant all on *.* to "MYSQLREPLICATIONUSER"@'%' identified by "MYSQLREPLICATIONPASSWORD" with grant option;
flush privileges;

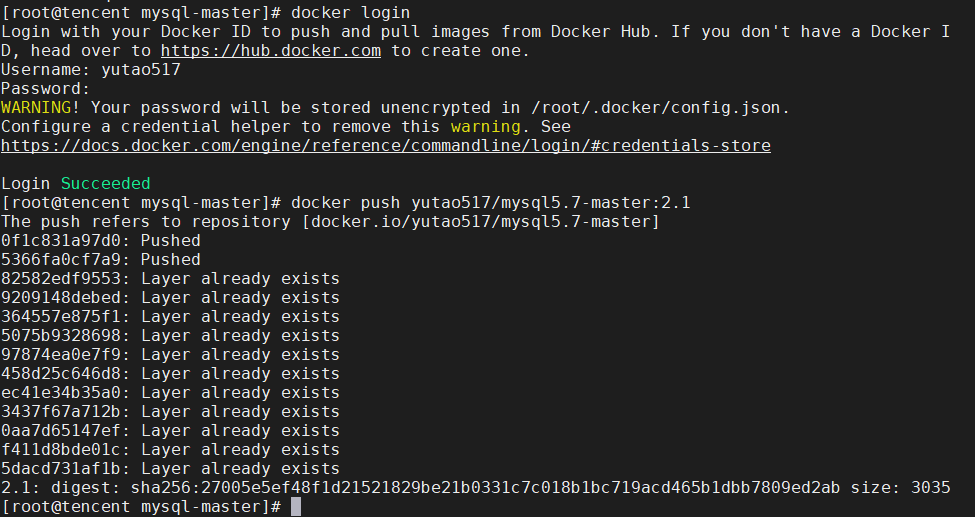

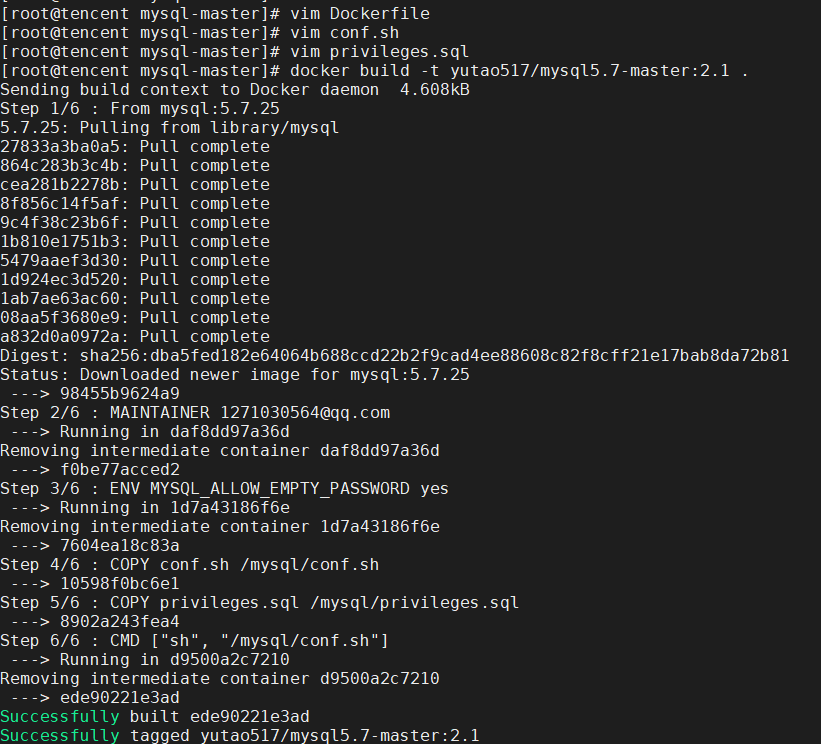

4、制作镜像上传至镜像仓库
启动容器测试配置是否成功
docker run --name yutaosql -e MYSQL_ROOT_PASSWORD="1234567" -e MYSQL_REPLICATION_USER="repl" -e MYSQL_REPLICATION_PASSWORD="1234567" -d yutao517/mysql5.7-master:2.1
链接容器测试登陆
docker exec -it yutaosql bash
mysql -uroot -p1234567

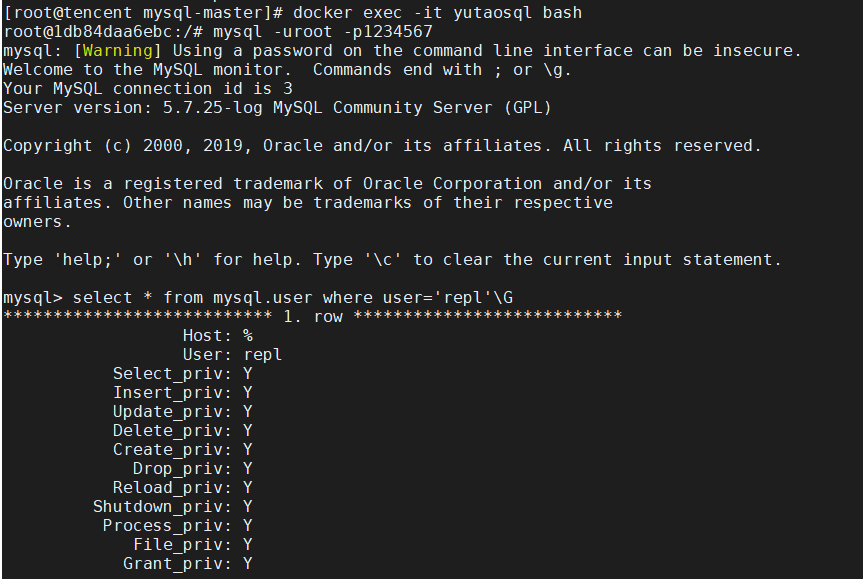

查看权限
mysql> select * from mysql.user where user='repl'\G
成功创建mysql-master镜像
mysql-slave
Dockerfile
From mysql:5.7.25
MAINTAINER [email protected]
ENV MYSQL_ALLOW_EMPTY_PASSWORD yes
COPY conf.sh /mysql/conf.sh
COPY privileges.sql /mysql/privileges.sql
CMD ["sh", "/mysql/conf.sh"]
启动脚本
#!/bin/bash
set -e
echo '1. set server_id...'
RAND="$(date +%s | rev | cut -c 1-2)$(echo ${RANDOM})"
sed -i '/\[mysqld\]/a server-id='$RAND'\nlog-bin=/var/log/mysql/mysql-bin\ngtid-mode=ON\nenforce-gtid-consistency=ON' /etc/mysql/mysql.conf.d/mysqld.cnf
echo '2. start mysql...'
service mysql start
echo '3. setting password...'
sed -i 's/MYSQLROOTPASSWORD/'$MYSQL_ROOT_PASSWORD'/' /mysql/privileges.sql
sed -i 's/MYSQLMASTERSERVICEHOST/'$MYSQL_MASTER_SERVICE_HOST'/' /mysql/privileges.sql
sed -i 's/MYSQLREPLICATIONUSER/'$MYSQL_REPLICATION_USER'/' /mysql/privileges.sql
sed -i 's/MYSQLREPLICATIONPASSWORD/'$MYSQL_REPLICATION_PASSWORD'/' /mysql/privileges.sql
mysql < /mysql/privileges.sql
echo '4. service mysql status'
echo 'mysql for tigerfive if ready...'
tail -f /dev/null
privileges.sql
use mysql;
set password for root@'localhost' = password('MYSQLROOTPASSWORD');
flush privileges;
CHANGE MASTER TO master_host='MYSQLMASTERSERVICEHOST', master_user='MYSQLREPLICATIONUSER', master_password='MYSQLREPLICATIONPASSWORD' ;
START SLAVE;

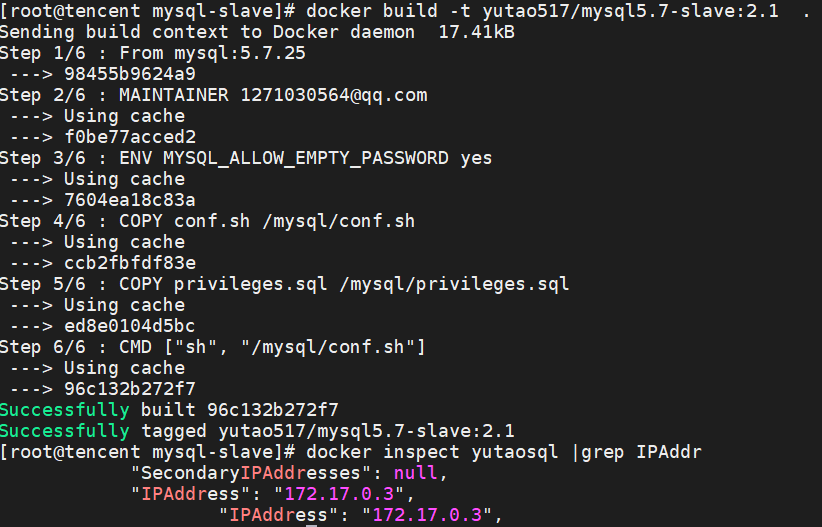

制作镜像上传至镜像仓库
docker build -t yutao517/mysql5.7-slave:2.1 .
docker push yutao517/mysql5.7-slave:2.1
查看mysql-master的容器IP
docker inspect yutaosql |grep IPAddr
启动命令
docker run --name yutaosql2 -e MYSQL_ROOT_PASSWORD="1234567" -e MYSQL_MASTER_SERVICE_HOST="172.17.0.3" -e MYSQL_REPLICATION_USER='repl' -e MYSQL_REPLICATION_PASSWORD="1234567" -d yutao517/mysql5.7-slave:2.1
验证

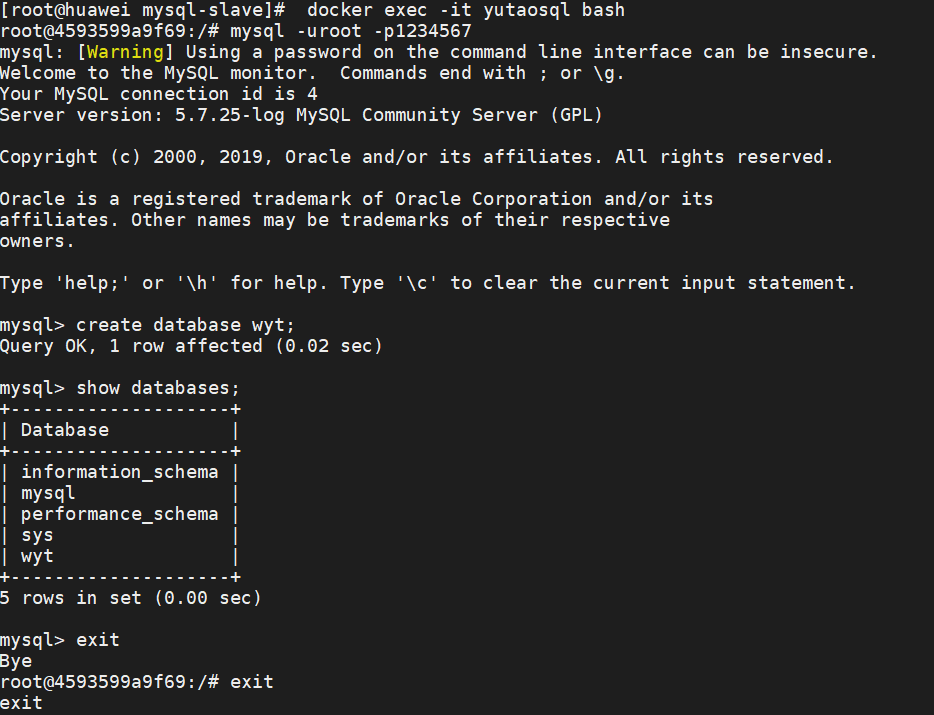

mysql-master插入数据
docker exec -it yutaosql bash

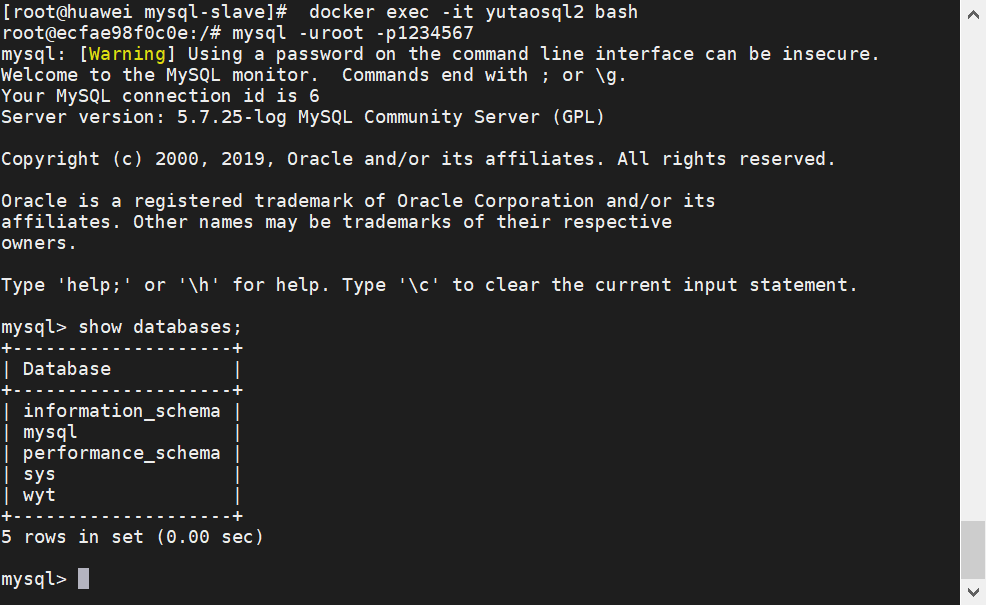

mysql-slave查看是否同步
